DE90-3000 • Retrofit Kit for Strand Digital Environ DE90 Architectural Dimmer Rack

The DE90-3000 Upgrade Dimming Control System eliminates the need to replace costly Strand DE90 dimming systems.

The DE90-3000 is a next-generation retrofit electronics package designed specifically for Strand Digital Environ DE90 Architectural dimmer racks. The DE90-3000 can significantly reduce your costs by upgrading aging control electronics in the existing Strand DE90 dimmer rack, eliminating the need for an expensive replacement. This full-featured, state-of-the-art unit provides a digital interface to modern lighting communication protocols.

Designed to install in minutes with only a multi-screwdriver, the DE90-3000 Retrofit kit was crafted for longevity and reliability with the end user in mind. Intuitive LCD user interface and OEM wiring compatible backplane combined with the 3000 Series control technology and software makes the DE90-3000 user-friendly and easily serviceable. Advanced next-generation hardware and software designs reduce standby power consumption to less than 1 watt. This power consumption complies with the International Energy Agency’s “One Watt Initiative” for standby power consumption. Additionally, the DE90-3000 dimming control system will provide a “Green” dimmer rack!

The Environ De90 Retrofit kit offers full-featured, high-resolution dimming with lightning-fast response. The exclusive “lamp warming” techniques extend lamp life considerably by lowering lamp filament inrush current by up to 70%. These details provide an environmentally and financially responsible solution that offers unsurpassed performance and value in minutes!

It replaces the old DE90 processor and backplane with new “next-generation” control electronics, upgrading any size standard Environ DE90 dimmer rack in minutes.
The Strand DE90-3000 is compatible with OEM dimmer rack wiring for easy installation.
These products are energy efficient, consuming less than 1 watt, complying with the International Energy Agency’s “One Watt Initiative.”
The unique “lamp warming” feature lowers the in-rush current to the dimmer by up to 70%, resulting in increased lamp filament life.
It has 24 high-resolution digital outputs with individual dimmer profile selection.

The isolated dual DMX inputs with a protocol manager.
Features analog, load shed, and dry contact inputs.
Includes an LCD user interface for ease of setup and monitoring. The site is programmable via a user-friendly, intuitive, and self-prompting menu structure. No laptop computer or special software is required!
“Plug-in” control electronics are also included for fast, easy servicing.
Up to a 10-year product warranty is available!

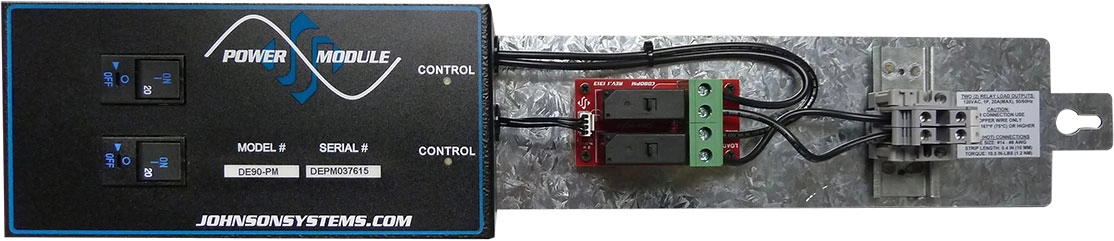

Non-dim “air gap” relay Power Modules are available!

Technical Documentation

Datasheet.pdf Download

Manual.pdf Download

Specifications Download

The Environ De90 Retrofit kit products are energy efficient and consume less than 1 watt, complying with the International Energy Agency’s “One Watt Initiative.”
