New Product! i96e-3000+

Introducing the I96e-3000+, So You Can Upgrade Your Colortran I Series E Dimming System

If you’ve needed repairs for your Colortran iSeries e dimming system since January 2024, you likely noticed that Leviton, the brand’s owner, has stopped providing support.

Fortunately, JSI Manufacturing has created a Colortran dimming retrofit solution: the i96e-3000+.

What Is the I96e-3000+?

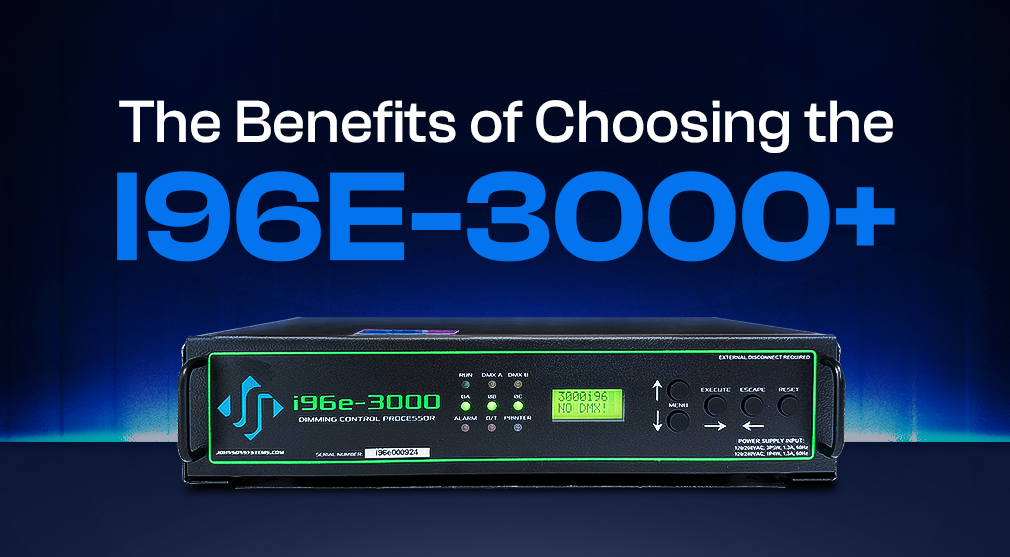

The i96e-3000+ is a state-of-the-art retrofit module designed to upgrade existing Colortran iSeries e dimming systems, allowing you to extend the life of your equipment without the need for a complete system replacement.

This ETL-listed lighting equipment:

  • Replaces the old OEM Colortran iSeries e Rack electronic card cage with next-generation control electronics.
  • Ensures processor reverse compatibility with all existing OEM Colortran iSeries e Racks. This includes the i96e, i48e, i24e, and i48e Quad racks.
  • Features a modular design with a single plug-in module.
  • Maintains compatibility with OEM dimmer rack wiring for fast, easy installation.
  • Supports onsite firmware upgrades via a USB-C bootloader.
  • Provides 96 high-resolution digital outputs with individual dimmer profile selection.
  • Includes dual opto-isolated DMX512 inputs.
  • Offers an optional Ethernet node supporting a wide range of communication protocols.
  • Integrates analog and dedicated dry contact BMS inputs for interfacing with HVAC, security, and fire alarms.
  • Features “Load Shed” inputs for power management and photocell interface.
  • Includes an LCD user interface with an intuitive, self-prompting menu structure, with no laptop or special software required.
  • Supports optional dimmer rack thermal shutdown protection.
  • Uses a removable memory dongle for remote/off-site backup, quick processor module swaps, and firmware upgrades.
  • Supports 12 & 24V DC power supplies to power JSI Presidor Wall Controls directly from the i96e-3000+ECM.
  • Features standard dimmer channel patches within the default menu to easily set up complicated patching

What Are the Benefits of Upgrading with the I96e-3000+?

Upgrading your aging Colortran iSeries e dimming system with the i96e-3000+ provides numerous advantages.

It’s Cost-Effective

Replacing your entire dimming system can be costly, with expenses sometimes reaching up to six figures. However, the i96e-3000+ offers a budget-friendly alternative. This Colortran dimming retrofit solution involves simply installing the new module, and sometimes upgrading your wall stations, allowing you to modernize your system without the high costs of a full replacement.

It’s Easy to Install

The Colortran dimming retrofit is designed for quick and hassle-free installation using only basic hand tools, and often without the need for a licensed electrical contractor. This makes it perfect for venues such as schools, houses of worship, and theaters on a limited budget that need an upgrade with minimal labour.

It’s Sustainable

Rather than entirely discarding your old Colortran iSeries e dimming system, the i96e-3000+ helps reduce waste by refurbishing your existing lighting setup.

It Has Modern Capabilities

Equipped with a digital interface, the i96e-3000+ ensures compatibility with today’s advanced lighting communication protocols, providing enhanced flexibility and integration with modern control systems.

It’s User-Friendly

With its intuitive LCD interface and modular design, the i96e-3000+ makes installation, setup, and ongoing service simpler than ever. No laptop or special software is required to operate the system.

It Has High Functionality

The i96e-3000+ features 96 high-resolution digital outputs and dual DMX512 inputs, providing fast, high-resolution dimming control.

It’s Future-Ready

The i96e-3000+ retrofit includes a USB-C port for easy firmware updates, ensuring your system remains up-to-date with the latest improvements and features. Plus, its compatibility with existing Colortran wiring guarantees seamless integration, now and in the future.

Ready to Make the Upgrade For Your Dimming System?

The i96e-3000+ retrofit module is the ideal solution for extending the life of your Colortran iSeries e dimming system, providing a cost-effective, sustainable, and high-performance upgrade.

So, when you’re ready to upgrade your Colortran dimming system, our sales team at JSI Manufacturing will be here to help determine if i96e-3000+ is right for you.

Contact our team to request a quote today.
